OpenCart extension

Overview

MakePay for OpenCart lets merchants accept crypto payments through hosted MakePay checkout without collecting payment details inside OpenCart. The extension appears as an OpenCart payment method, creates a MakePay payment link for each order, redirects the shopper to MakePay, and accepts signed webhooks to update OpenCart order status.

Before you start

• OpenCart 4.x
• PHP 8.0 or newer
• HTTPS on the store frontend
• A MakeCrypto company with MakePay enabled
• A MakeCrypto user who can connect the receiving company
• Optional: a MakePay API integration for manual API-key fallback

OpenCart stores extension settings in its database. Keep access to OpenCart admin limited to trusted operators because connection details, webhook secrets, and optional API-key fallback credentials are stored in the payment extension settings.

Set up MakeCrypto

Complete merchant setup before connecting OpenCart.

1. Open Home > Merchant > Payment settings and confirm MakePay is enabled.
2. Open Home > Integrations > API Integrations.
3. Confirm the user connecting OpenCart can manage integrations for that company.
4. Optional fallback: create or select an API integration, then copy the company ID, API key ID, and API key secret.

Install the extension

The recommended source is the official OpenCart Marketplace listing:

Open in OpenCart Extension Explorer

For manual installation, download the latest OpenCart package directly:

Download manual OCMOD ZIP

Then install it in OpenCart:

1. In OpenCart admin, open Extensions > Installer.
2. Upload makepay.ocmod.zip.
3. Open Extensions > Extensions and choose Payments.
4. Find MakePay and click install.
5. Open Edit to configure the payment method.

The package root contains install.json, admin/, and catalog/, matching the OpenCart 4 extension installer layout.

Connect MakePay

In Extensions > Payments > MakePay, use Connect MakePay. The extension:

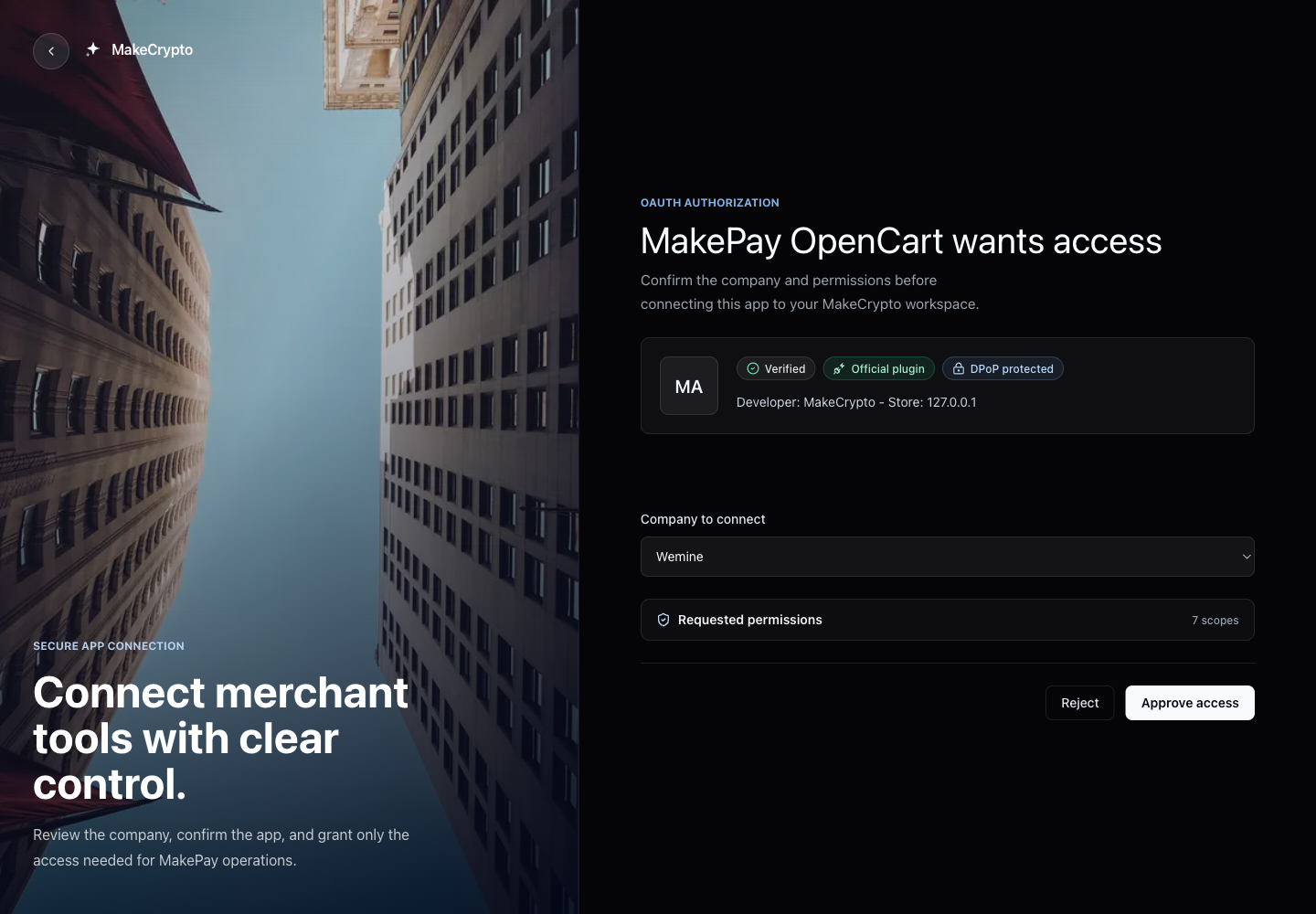

1. Opens MakeCrypto in a browser tab.
2. Asks you to sign in and choose the company that should receive payments.
3. Shows the permissions needed by the OpenCart extension.
4. Returns you to OpenCart after approval.
5. Saves the store connection and company ID.
6. Configures the MakePay webhook callback URL and webhook secret.

The connection asks for these permissions:

company:read
makepay:payment-links:read
makepay:payment-links:write
makepay:customers:read
makepay:customers:write
makepay:settings:read
makepay:settings:write

The redirect URI has this shape:

https://your-store.example/index.php?route=extension/makepay/payment/makepay.oauth

Configure MakePay

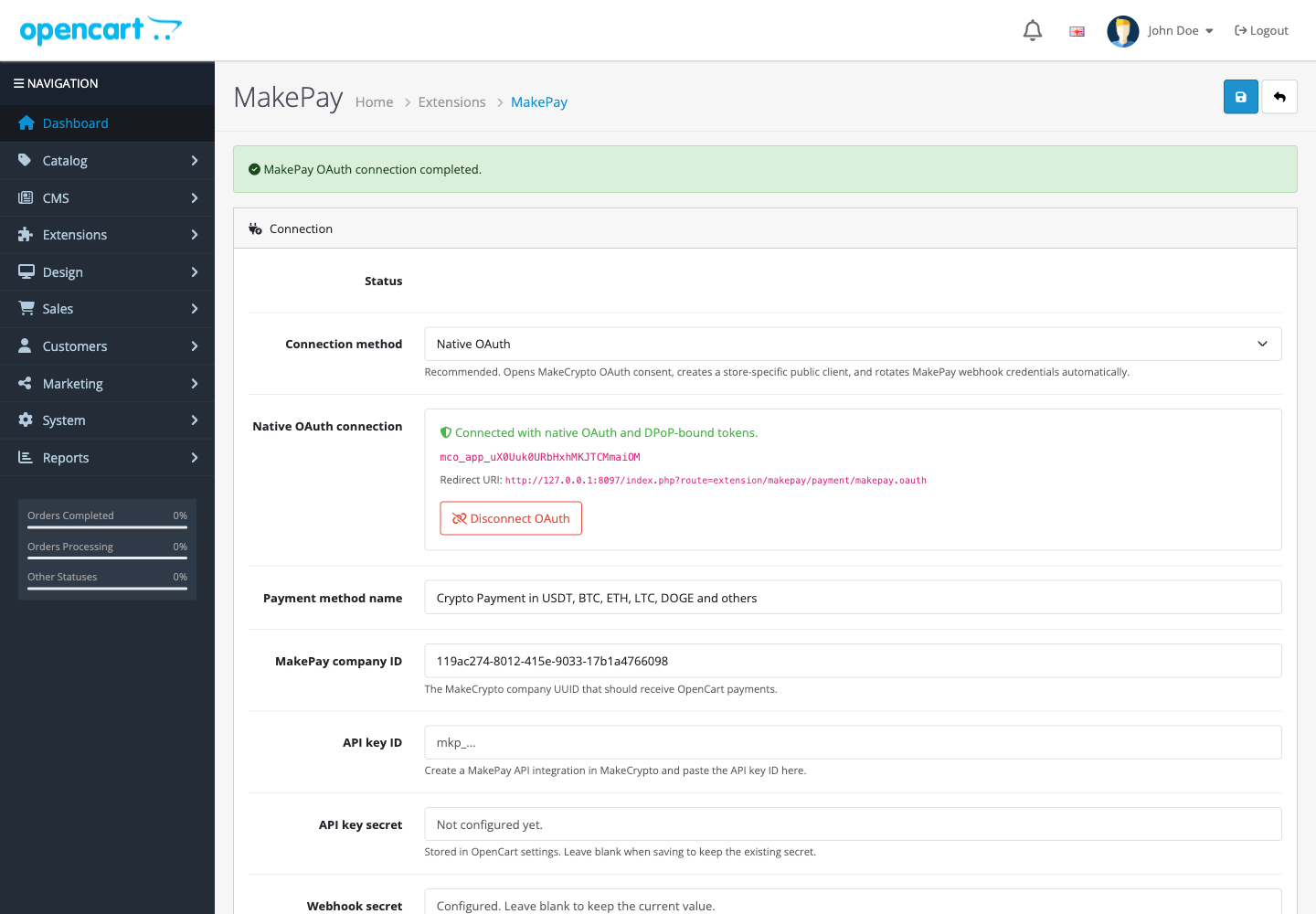

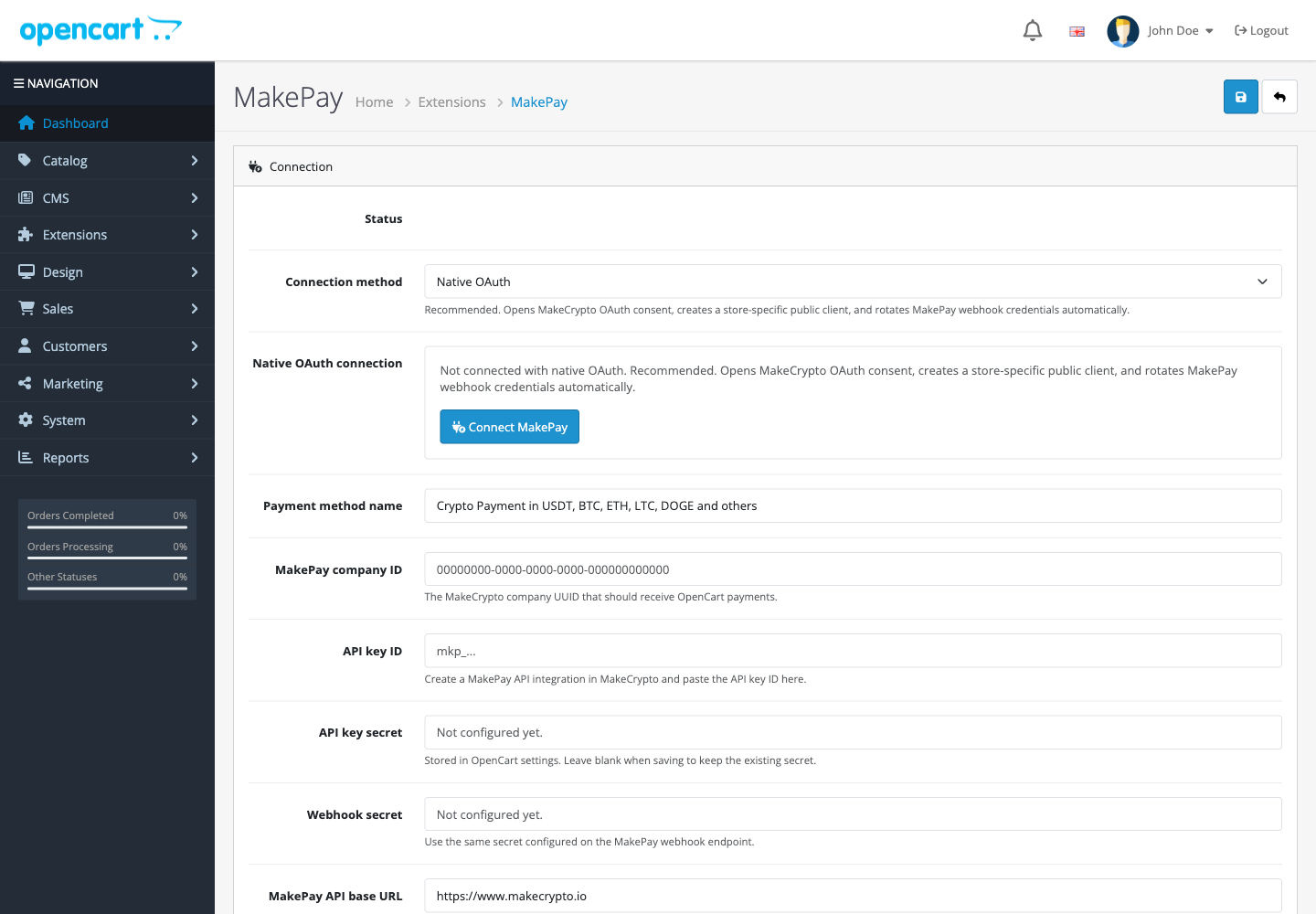

In Extensions > Payments > MakePay, configure:

Field	Value
Status	Enabled
Payment method name	Shopper-facing checkout label
Connection method	Connect MakePay, or manual API key fallback
MakePay company ID	Filled after connection, or manually entered for API-key fallback
API key ID	API integration key ID for fallback only
API key secret	API integration secret for fallback only
Webhook secret	Set during connection, or manually entered for fallback
API base URL	https://www.makecrypto.io
Settlement currency	Default settlement asset, for example USDT
Payment link expiration	For example 12h
Checkout experience	Hosted redirect, or embedded checkout with a secure iframe and hosted-link fallback

The default payment method name is:

Crypto Payment in USDT, BTC, ETH, LTC, DOGE and others

Configure webhooks

Copy the webhook URL shown in the OpenCart MakePay settings page. It has this shape:

https://your-store.example/index.php?route=extension/makepay/payment/makepay.webhook

Connect MakePay configures this callback automatically. For manual API-key fallback, add it to MakePay webhook settings with the same webhook secret entered in OpenCart.

The extension verifies X-MakePay-Signature before it updates an order. The signature uses the timestamped HMAC format:

t=1760000000,v1=<hex-hmac>

Checkout flow

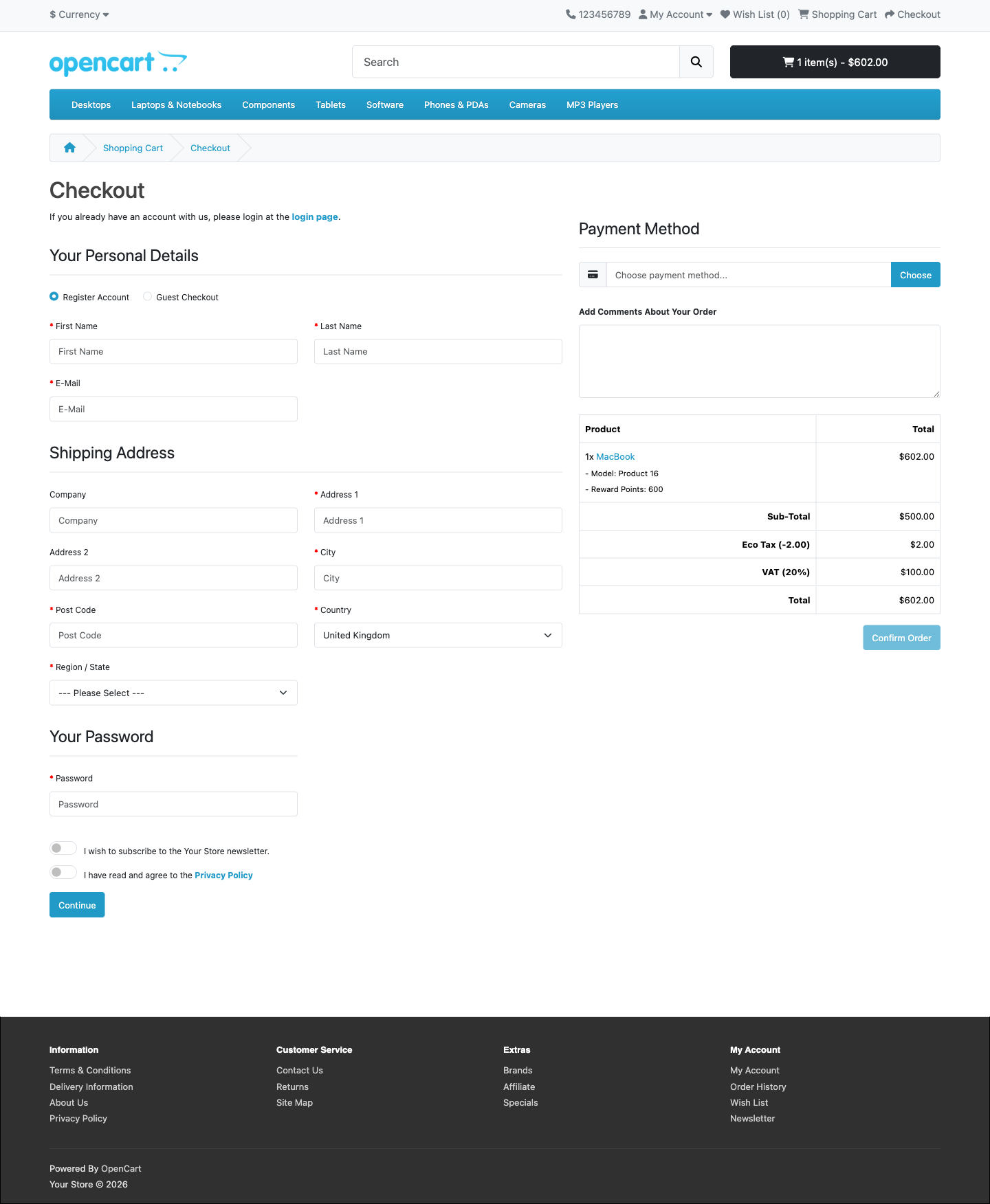

When the shopper selects MakePay:

1. OpenCart validates the active order and selected payment method.
2. The extension calls the MakePay partner API to create a payment link.
3. The order is moved to the configured pending status.

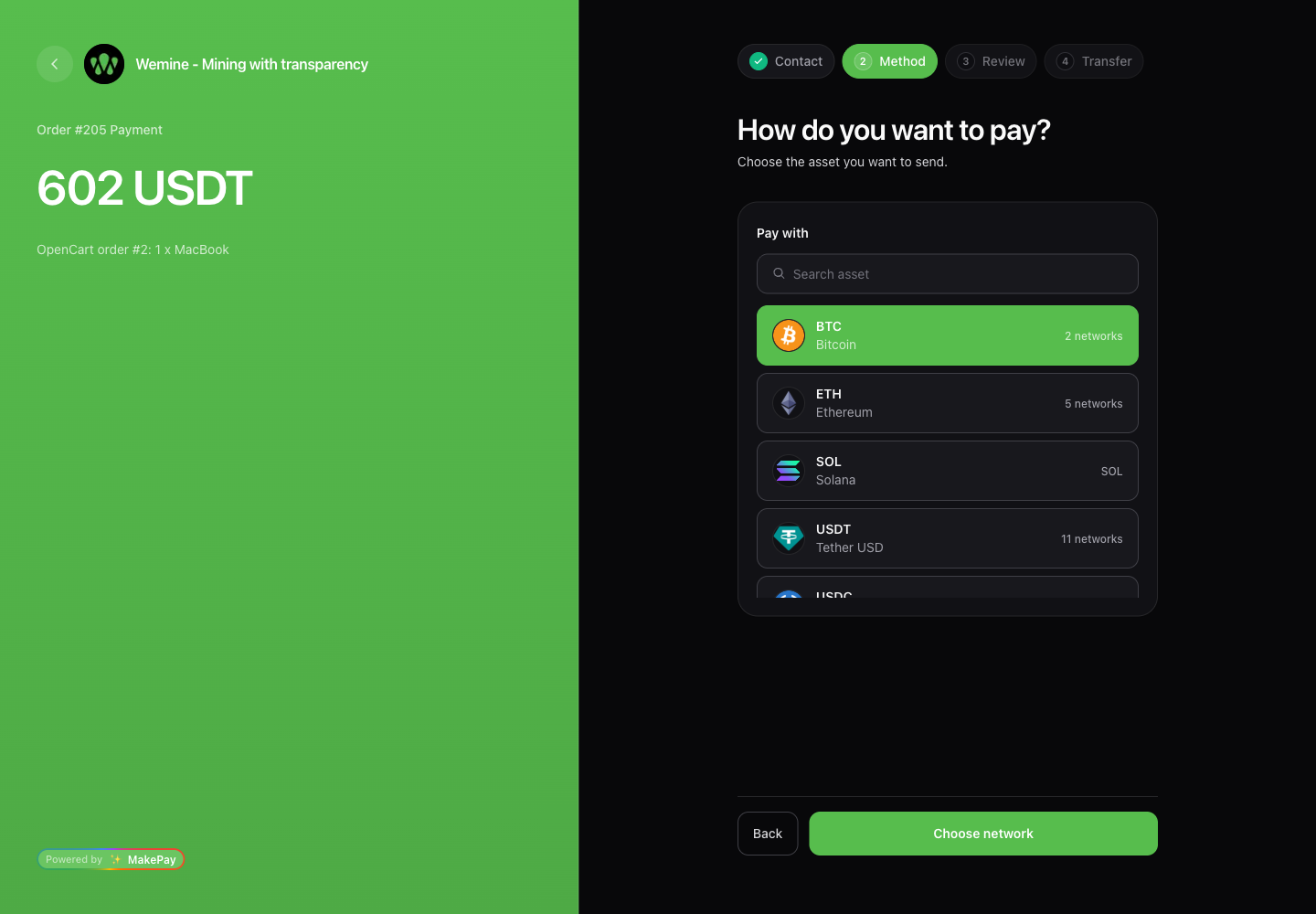

4. The shopper opens the selected MakePay checkout experience.
5. A signed webhook updates the OpenCart order after payment status changes.

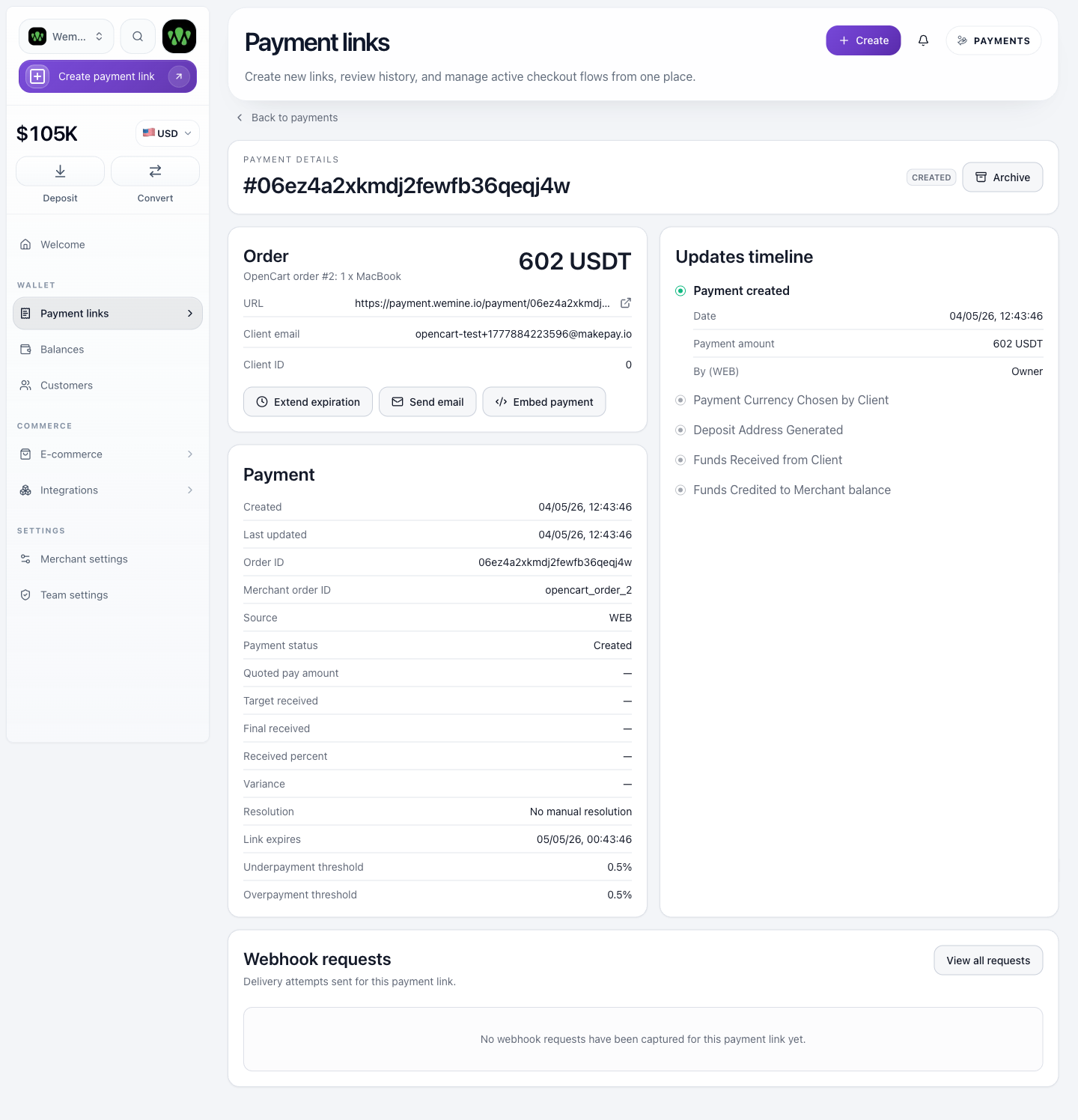

The payment link includes metadata:

Metadata	Purpose
source=opencart	Identifies the integration
orderId	OpenCart order ID
storeId	OpenCart store ID
storeName	Store name
storeUrl	Store frontend URL
opencartOrderId	OpenCart order ID for dashboard and webhook matching
opencartOrderAdminUrl	Admin order URL used by MakeCrypto's Show order action
storeOrderAdminUrl	Generic admin order URL fallback for connected stores
moduleVersion	MakePay OpenCart extension version
opencartVersion	OpenCart runtime version

Order states

Configure the status mapping in the extension settings.

MakePay status	OpenCart status
paid, completed, confirmed, succeeded	Paid status
failed, expired, chargeback	Failed status
cancelled, canceled	Cancelled status
refunded	Refunded status
Any in-progress status	Pending status

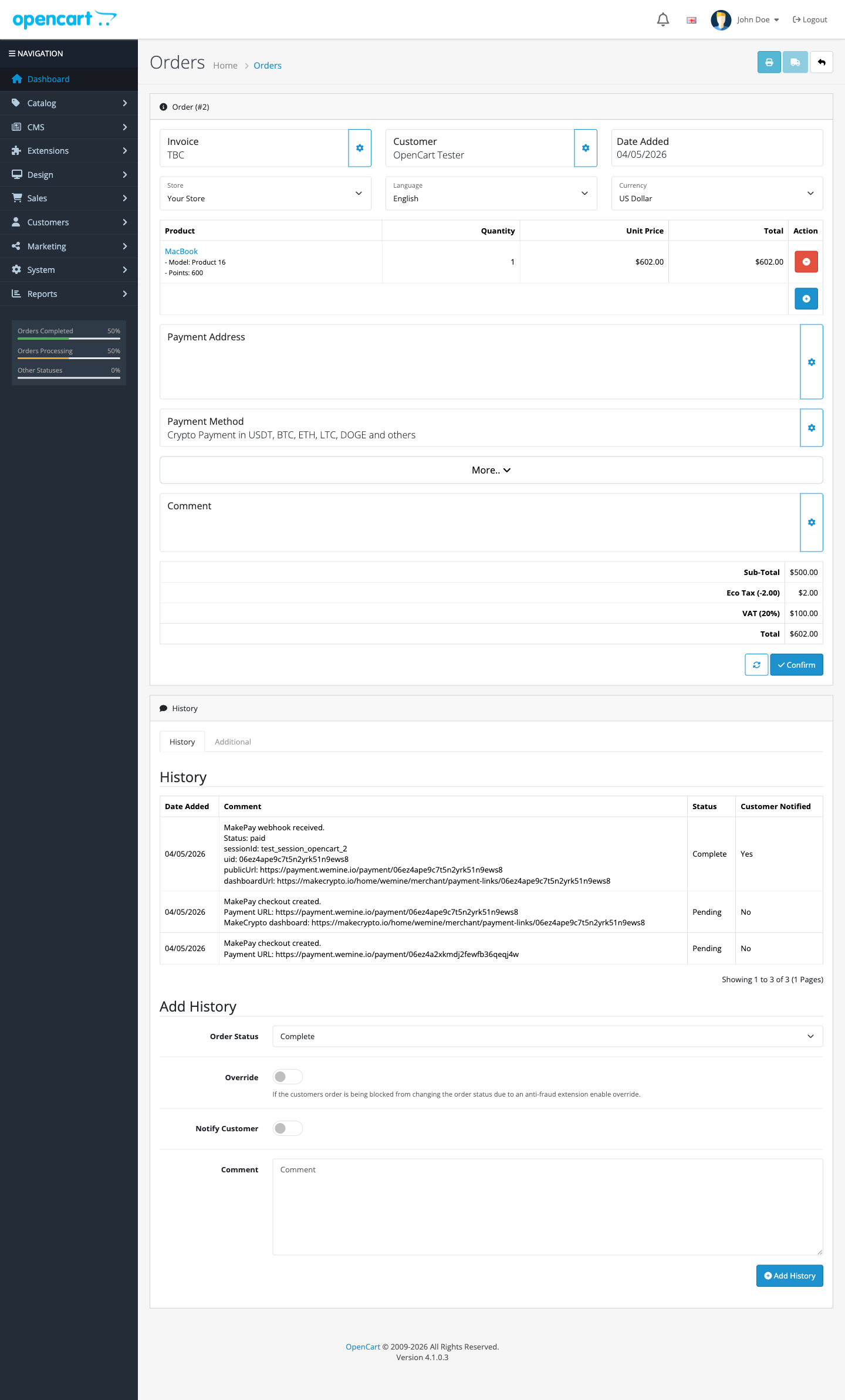

The extension adds an order history comment containing the MakePay status, payment UID or ID, amount, asset, and hosted checkout URL when present in the webhook payload. The initial checkout history entry also includes the public payment URL and the MakeCrypto dashboard payment link when the API response provides one.

Security notes

• Use HTTPS for checkout and webhook URLs.
• Keep OpenCart admin access restricted because connection details and optional API credentials are stored in OpenCart settings.
• Revoke the OpenCart connected app from MakeCrypto if an OpenCart admin account is compromised.
• Rotate the MakePay API key if manual API-key fallback credentials are exposed.
• Keep the webhook secret different from the API key secret.
• Treat unexpected webhook signature failures as a credential mismatch or a possible spoofing attempt.

Troubleshooting

If the payment method is not visible, confirm MakePay is enabled, the cart total meets the configured minimum, and the customer address matches the configured geo zone.

If Connect MakePay fails, confirm the OpenCart store URL is HTTPS and the browser returns to the callback URL shown above.

If checkout does not redirect, confirm the store is connected. For manual fallback, confirm the company ID, API key ID, API key secret, API base URL, and MakePay API integration permissions.

If orders do not update after payment, confirm the webhook URL is reachable publicly over HTTPS and the webhook secret in MakePay matches the secret saved in OpenCart.

If OpenCart reports an installer error, confirm the downloaded file ends with .ocmod.zip and contains install.json, admin/, and catalog/ at the ZIP root.
